Starting a wootz katana. This is a personal project so the progress will likely be slow....

Here is where we are at:

  1. Ingot Melted
  2. Ingot roasted

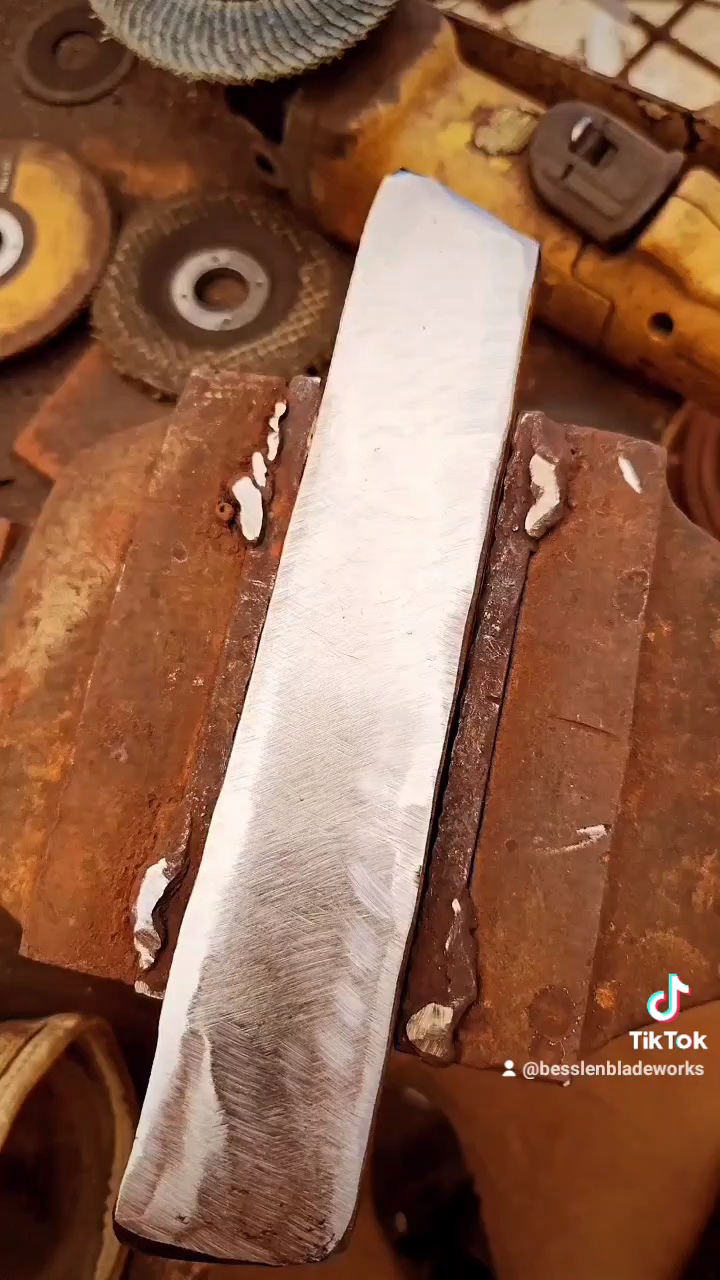

  3. Initial bar formed
  4. Bar forged into 1 in x 10 mm x 26 in (sorry for mixing imperial and metric lol)
  5. Forming of the sunobe will be next

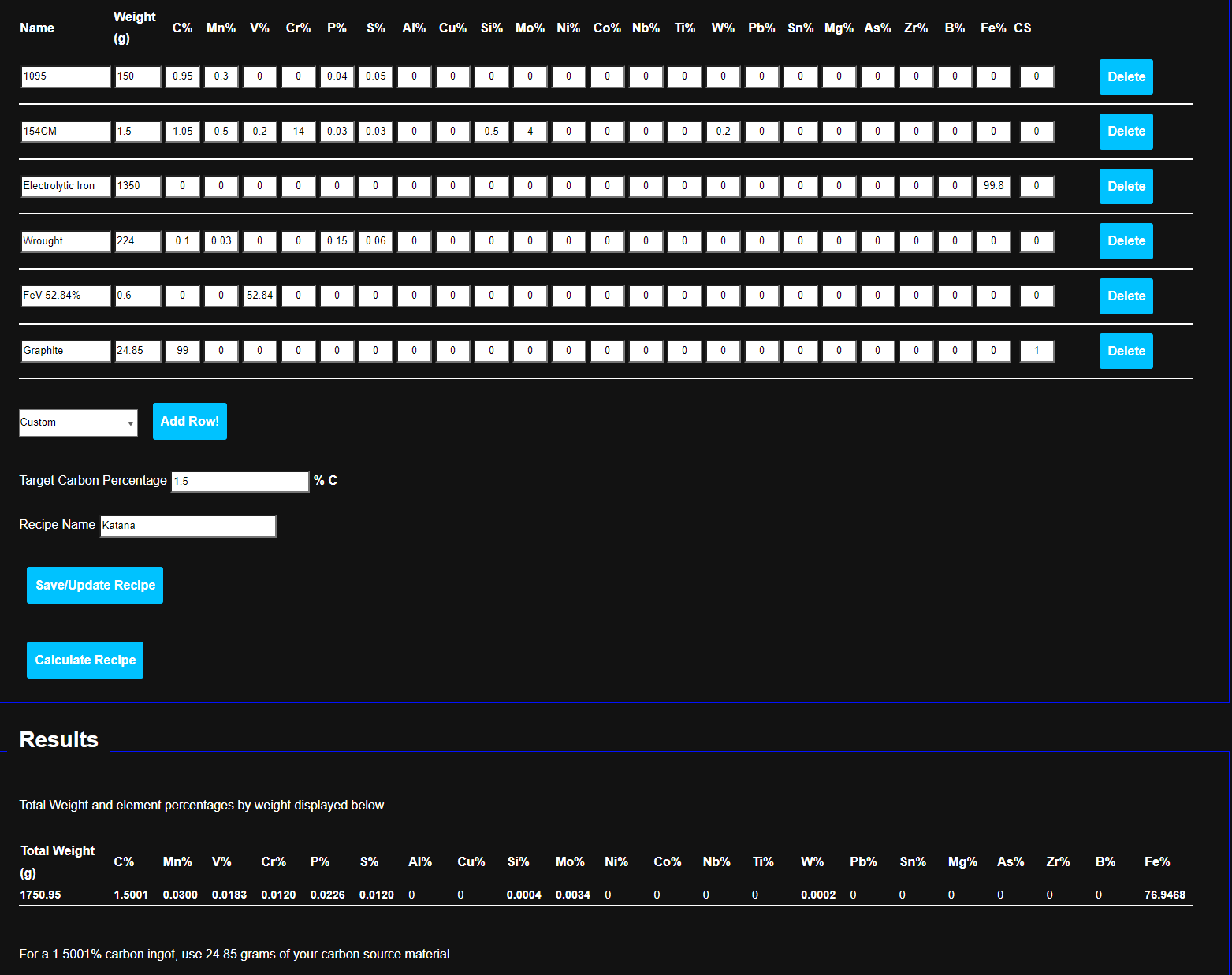

Wootz Recipe


Uploaded files:
  • 20220731_145342.jpg
  • VideoCapture_20220808-144756.jpg
  • WIN_20220802_16_15_50_Pro.jpg
  • image.png

After forging the bar in step 4 above, it was reduced even further down into a sunobe or preform.

The sunobe is 33 in overall with mune-machi to tip at 24 in

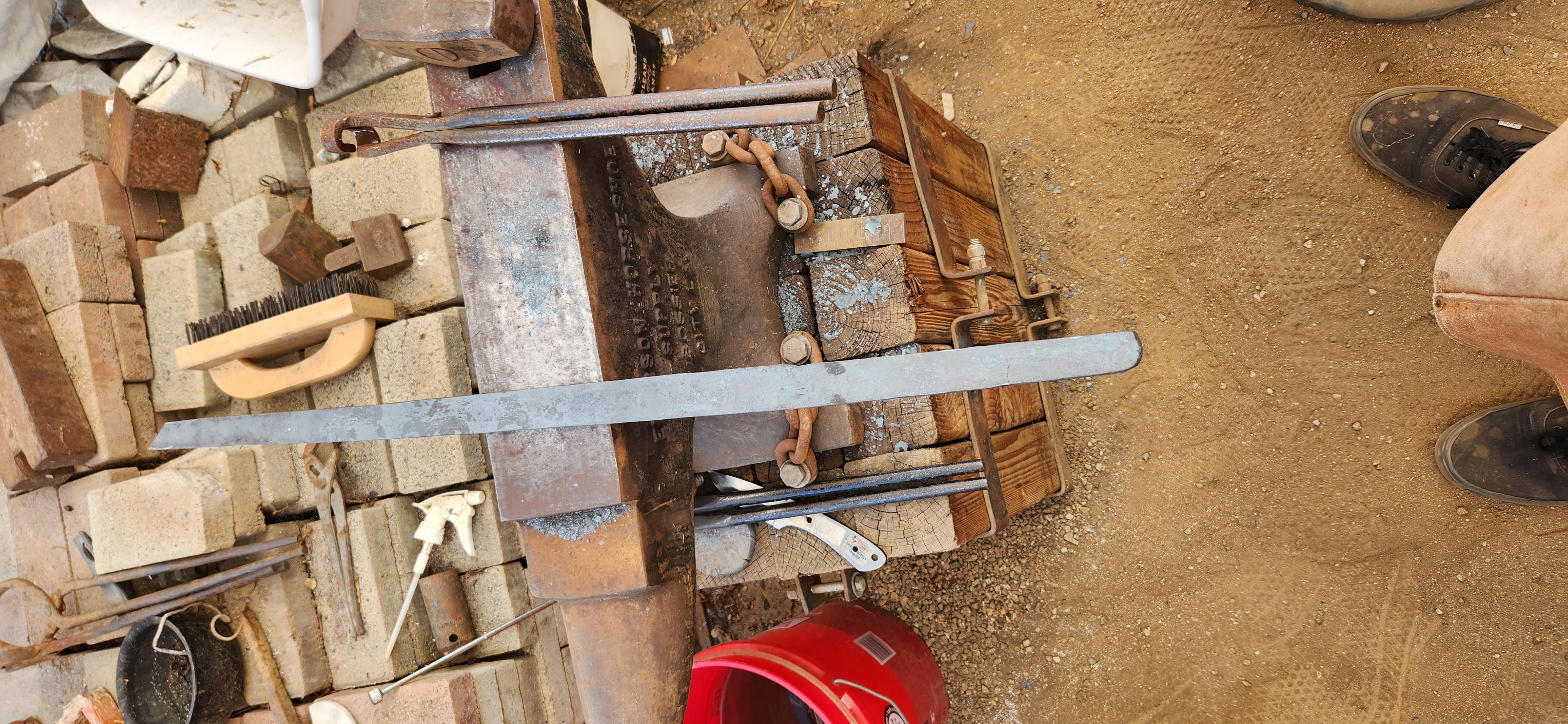

Wootz Sunobe

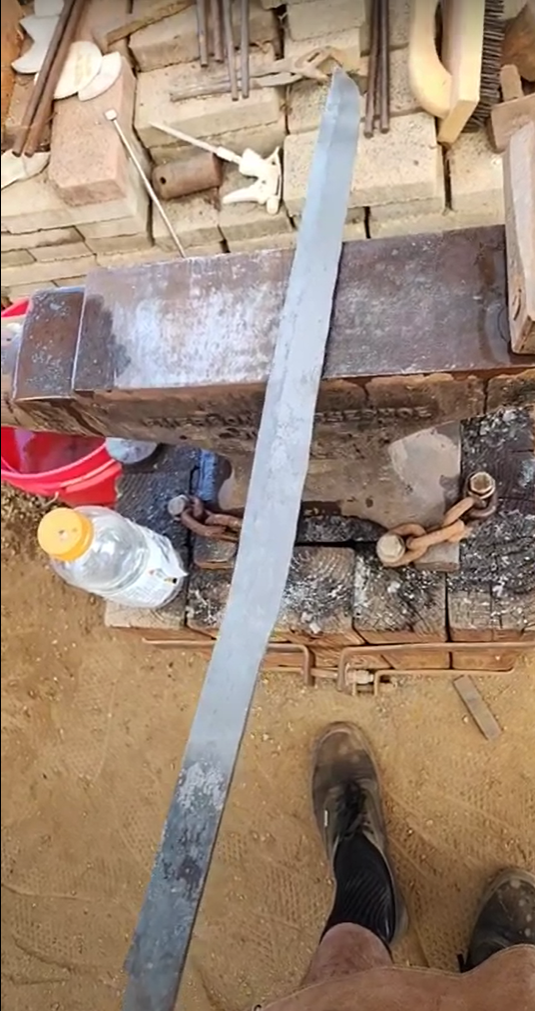

The sunobe in the process of beveling

Sunobe Beveling

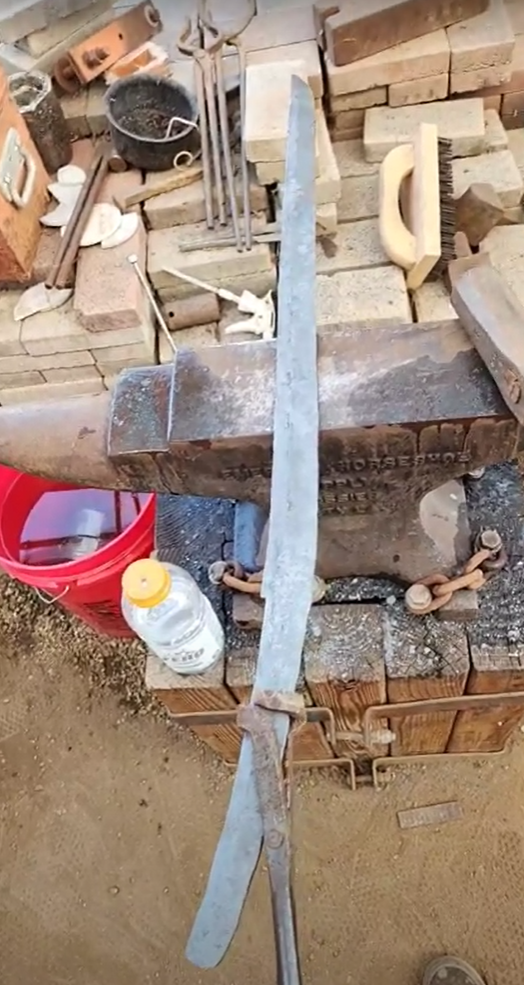

Bevels formed

Bevels formed

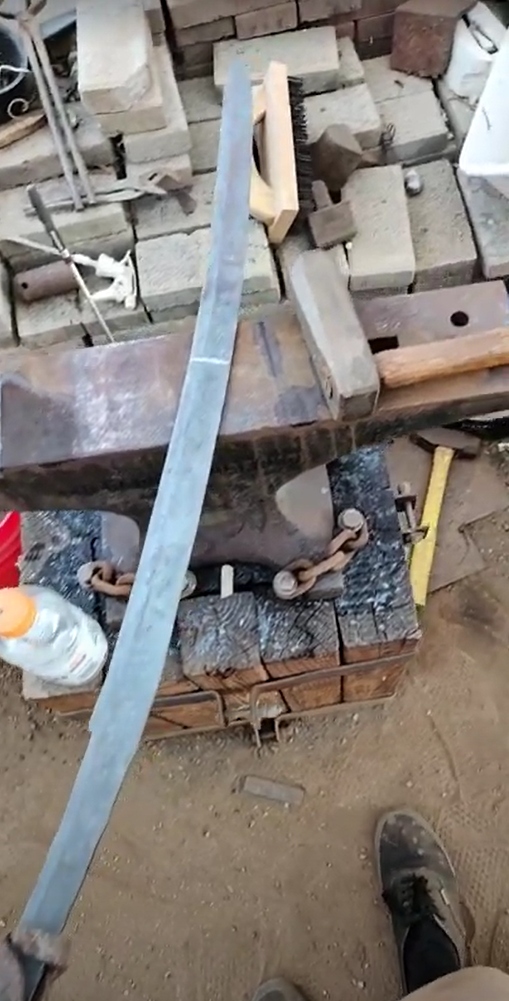

Bevels refined

Bevels refined


At this point I still have a bit more refining of bevels to go. The nagasa is 25 in and I should be able to squeeze another 3 inches out of it. I will also have to straighten it a bit to prepare it for a water quench.

Uploaded files:
  • Sunobe.jpg
  • Sunobe1.png
  • Sunobe2.png
  • Sunobe3.png
